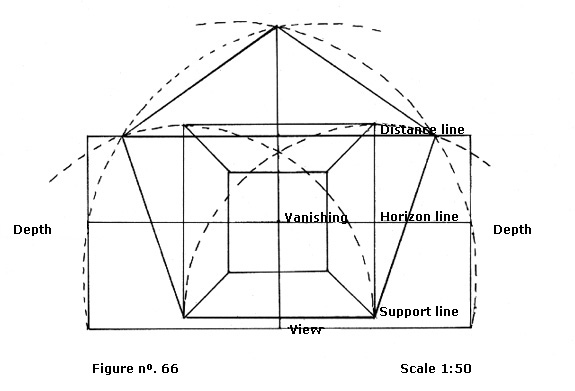

STUDY CONCLUSION HORIZON LINE 1.70m HIGHThe DISTANCE LINE...............is the horizontal height that joins the vertices of the pentagon. The SUPPORT LINE................is the base of the pentagon. The HORIZON LINE................represents the viewer’s eye level. The VANISHING POINT...........is the remotest point, the farthest viewer’s point. It is located on the infinity, on the horizon. The VIEW POINT..................is the place where the viewer is, 17cm away from the focused vision. The DEPTH POINTS..............are the lateral extremities of our out-of-focus vision transferred to the horizon line. Our vision obtains a clear image 17cm ahead of our eyes, comprising a space of a 3x3 m square on the vertical plane. It is the 60º vision. Our out-of-focus vision, located prior to reaching 17cm is made up of two squares measuring 3x3 m. This gives us a vision of 180º.
|
||||||||||||||
|
