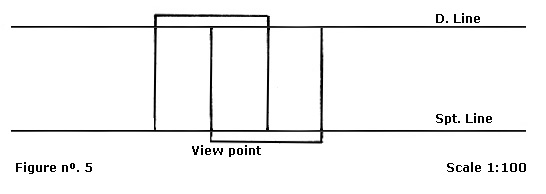

| The
structure above shows the NEW FOUNDATION for the exact perspective,
which consists of an overlapping of two images: one out-of-focus
image starting at the view point (where the viewer is located),
and another clear image 17cm apart from the viewer, on the support
line, where we will draw a flat surface that resulted from these
two overlapped images.
Therefore:-

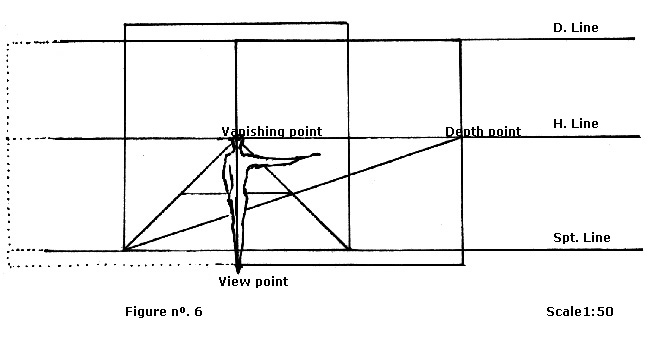

Work
always with squares measuring 3x3 meters.
Scale:
1:50,
|
|
3
meters correspond to............. 6 centimeters |
| |
|
|
|
|
17
centimeters correspond to..... 3,4 millimeters |
| |
|
|
The
depth point can be at the right or at the left of the vanishing
point. |
| |
|
|
|
